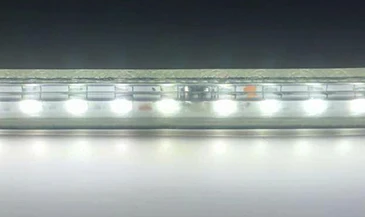

SMD 2835 Multi Color Changing Strip LED

SMD 2835 Multi Color Changing Strip LED

  • Product model:1722481746
  • Category:New Product
  • QR code:
  • Product description
Overview




Q
Quick Details
Support Dimmer:YES                                                                   Lighting solutions service:Lighting and circuitry design
Lamp Power:5W/M                                                                      Lamp Luminous Flux(lm):230
CRI (Ra>):80                                                                                 Working Temperature(℃):-20 - 40
Working Lifetime(Hour):50000                                                   Lamp Body Material:PVC
Certification:ce, CQC, EMC, ETL, FCC, pse, ROHS                      Place of Origin:Guangdong, China
Brand Name:SBARTAR                                                                Application:LANDSCAPE
Light Source:LED                                                                          Warranty(Year):2-Year
Item Type:Light StripsSMD2835 60pcs/m                                Emitting Color:Warm White/Nature White/Cold White
LED Type:SMD2835                                                                    IP Rating:IP65
FPC Width:8mm                                                                          Dimension:W10.5*H7.5mm
Cutting Length:1m                                                                     Led Chip:Epistar,Sanan
Warranty:2 years                                                                        Beam Angle:120
Input Voltage(V):AC220V                                                          Supply AbilitySupply Ability:700000 Meter/Meters per Month
Packaging & Delivery
Packaging DetailsSelling Units: Single item
Single package size: 32.5X32.5X15.5 cm
Single gross weight: 6.8 KG
Package Type: Pack of 1 roll + 1pc power cord + 100pcs clips 40HQ: 4200 rolls/73.18 m3/28560 kg 20' : 1764 rolls/30.74 m3/11995.2 kg 40': 3675 Rolls/64.03 m3/24990kgPortSHENZHENLead Time :
Quantity(Meters)1 - 10001001 - 5000>5000
Est. Time(days)1025To be negotiated


Product Description

>> Specifications:



ItemSP2835H60.220V
LED Type 2835SMD LED
Rated lifetime of LED (h)50,000
LED Quantity (units/m)60
Input Voltage (V)220-240 AC
Frequency (Hz) 50
Driver Mode Constant voltage
Certification CE,RoHS
Color Temperature (K)3000,4000,6500
Dimmable Dimming by dimmer
Max.Wattage (W/m)  14.4
Power Consumption (W/m)5
Beam Angle 120
Min. Cutting Unit (LEDs) 60
Min. Cutting Length(mm)1,000
Min. Bending Dia (mm) 80
Protection Rating  IP65
Ambient Temp. -20℃ to +40℃ ( 25℃-best fit )
Sectional Dimension (mm)Width10.5 x Thickness7.5
Length per Roll 50m/164ft
Package Quantity Pack of 1 roll + 1pc power cord + 100pcs clips
Package G.W.(kg) 6.8
CBM0.017
Warranty (years) 2


>> Description:



  • Waterproof. IP65 rating. Can be used in outdoor.

  • Easy Installation. US power plug included.Plug and play without wiring.

  • Components Saving. Can be directly connected into main supply, no power adapter, transformer or driver is required.

  • Flexible. Slim, compact and flexible PCB strip. Applicable for bendable or angled patterns, or in continuous rows.

  • Cuttable and linkable. It can be cut to length along the cutting marks, without damaging the rest strips.

  • High Voltage. Low voltage drop. More little light attenuation, well-distribute lighting in the whole 50 m strips.

  • Reduce re-lamp frequence. Long lifespan. Save effort and labour costs on changing lights frequently.

  • Widely applicable. Not only be cut in sections, but also can maximum run 50 meters with only one power plug.

  • Eco-Friendly. No lead or mercury Application: It is convenient and cost-saving for large outdoor projects.

  • Application. Perfect mood lighting solution in house, office, club, shop, pub, restaurant,hotel,etc.

>> Dimensioned drawing & Packaging Photo

Multi Color Changing 60leds 2835 Strip LED Lighting led display

Details

>> Details Show

Multi Color Changing 60leds 2835 Strip LED Lighting led displayMulti Color Changing 60leds 2835 Strip LED Lighting led displayMulti Color Changing 60leds 2835 Strip LED Lighting led display

Application

>> Application condition

  • Indoor and outdoor,avoid direct sunlight and immersion in water.

  • Where people can't touch them directly.

>> Application scene

  • Public lighting  such as tunnel, bridge, park

  • Commercial lighting include hotel, shopping mall

  • Home lighting such as living room, dining room, passageway, garden

  • Architectural outline decorations

Multi Color Changing 60leds 2835 Strip LED Lighting led display Multi Color Changing 60leds 2835 Strip LED Lighting led display

Company Information

>> Company Profile:



SHENZHEN SPARTA OPTOELECTRONICS CO.,LTD, established in 2011, focus on the development and manufacturering of flexible led strip lights. We have our own independent laboratory with advanced testing equipments and experienced R&D engineers.  As the OEM supplier for Panasonic, Philips and Opple, we  have our unique resources, advanced equipments, skillful processing techniques and strict quality control,which would guarantee us to be a stable and reliable supplier for flexible led strip lights. All our products with the certificates of CQC,CB,TUV-mark,CE,RoHS,ERP,FCC,ETL,PSE,SAA and ISO9001:2015.

Multi Color Changing 60leds 2835 Strip LED Lighting led display

>> Certifications:

  • ISO9001:2015  NO.NOA157158

  • CE-EMC   No.POCE17070514TCE

  • CB            No.SE-85590

  • ETL          Control Number 5004987

  • PSE          No.17042155001

  • ERP          No.LCS130802053TS

  • RoHS        No.LCS1111243152R

  • S-Mark      No.1700833

  • IPX5          Ref No.WSCT-EA1601057A

  • CE             NO.50362900

  • CB             No.16079267001

  • FCC           No.50062377001

  • ERP           No.50066086001

  • EMC          No.50062375001

  • TUV-Mark  No.50365900

  • RoHS         No.0164071049b

  • PAHS         No,0164071049c

    Multi Color Changing 60leds 2835 Strip LED Lighting led display

    >> Production Flow:

    • 3 times 100% inspectiion

    • 2 times  Sampling inspection

    Multi Color Changing 60leds 2835 Strip LED Lighting led display

    FAQ

    Q:Are you a manufacturer?

    A:Yes,we have more than 100 staff in the first production and QC line.W have 9 SMD meachines, 2 reflow soldering, 6 extruding machines, 2 plastic injection mechines, own professional laboratory, and other machine lines.



    Q:How do you control quality?

    A:Sparta focus on Led strip light only.We control quality by a strict flowing systerm,ISO9001:2015 standard,from material such as LED chip,FPCB,and PVC to ever-improving structure and well-trained QC staff.



    Q:Can you send us sample?

    A:We can send 0.5 to 1 meter of one single color for free.The freight cost need to be collected.



    Q:Do you have MOQ?

    A: MOQ 1000meters each model.For color jacket and other non-standard products,MOQ depends on your requirment.



    Q:What is the delivery time?

    A: 9-35 days for less than 50,000meters.The factory practical production schedule shall prevail.



    Q:What about your standard packing and shipment?

    A: 110V/220V led strip light:Plastic reel with strong carton box.12V/24V tape light:Plastic reel in ESD bag with strong carton.

    Customized packing is available.

    Ship by air,sea,expree such as Fedex, DHL, TNT, UPS are suggested.



    Q:What's your payment term?

    T/T, Paypal, L/C at sight are acceptable.



    Q:What is your conventional color temperature?

    A:Warm white: 3000±200K

         Natural white:4000±200K
         Pure white: 5000K±300K
         Cool white:6500K±500K

    Other color can be customized at MOQ 5000meters.


    Q: What is your conventional color rendering index (CRI,Ra)?
    A: CRI 80.

    CRI 90,CRI 95 can be customized at MOQ 5000meters.



    Q:What is the input voltage range of your led strip?
    A: AC100-130V for 110V led strip

        AC220-240V for 220V led strip

    Other color can be customized at MOQ 5000meters.



    Q:Can we have Multiple Listee of your cETLus certification ?

    A:Yes. After that,you can show your company information on the product and package,without any information of SPARTA.



    Q: Can you offer OEM or ODM service?
    A: Yes, we offer OEM and ODM service for some international famous brand since 2014.



    More FAQs about product function and application, please email or call us right now !

    Payment & Delivery

    >> Payment:



    For your financial security, please contact our customer service personnel before payment to confirm payment method and account number.



    >>Delivery:

    • Goods will be shipped within 5-15 working days after receiving payment.

    • It will takes approximately 5-10 working days by Express,DHL/TNT/UPS/Fedex/EMS etc.

    • Please check your delivery address is right.

    • Tranking number and finished goods pictures will be emailed.

    • Please feel free to contact us,we will try our very best to resolve any problems with you.

    Multi Color Changing 60leds 2835 Strip LED Lighting led display
