24V 512 COB led strip ligh

24V 512 COB led strip ligh

  • Product model：1722492627
  • Category：New Product
  • QR code：
Send Enquiry
  • Product description
Overview




Quick Details

Color Temperature(CCT):6000K (Daylight Alert), 3000K/4000K/6000K                             Lamp Luminous Efficiency(lm/w):120
Color Rendering Index(Ra):90                                                                                            Support Dimmer:Yes
Lighting solutions service:Lighting and circuitry design, Technology Suppory                Luminous Efficacy(lm/w):120
Lifespan (hours):50000                                                                                                       Working Time (hours):50000
Input Voltage(V):DC 24V                                                                                                    Lamp Power:10W/M
Lamp Luminous Flux(lm):1200lm                                                                                       CRI (Ra>): 90
Working Temperature(℃):-20 - 40                                                                                    Working Lifetime(Hour):50000
Lamp Body Material:PCB+PVC+Copper                                                                            Certification:CE, EMC, LVD, ROHS, CE,RoHS
Place of Origin:Guangdong, China                                                                                    Brand Name:SBARTAR
Model Number:SP.COB512.082                                                                                        Application:Office, indoor lighting
Light Source:LED                                                                                                               Warranty(Year):5-Year
Switch Mode:Bluetooth, Remote Control, WIFI, Manual Button                                      LED Quantity:512pcs/m
Cutting unit:62.5mm/2.46inch                                                                                          Warranty:5 Years
IP Rating:IP20 (can be IP65,IP67)                                                                                      Sectional Size:W8*H1.6mm

Dimmable:Yes                                                                                                                   Material:Copper





Packaging & Delivery

Selling Units:Single itemSingle package size: 16X1.4X2 cmSingle gross weight:0.120 kgPackage Type:5M/roll in ESD bag
40rolls/ctn
44*22*22cm
40HQ: 4200 rolls/73.18 m3/28560kg 20' : 1764 rolls/30.74 m3/11995.2kg 40': 3675 Rolls/64.03 m3/24990kgPicture Example:
package-img
Lead Time :
Quantity(Meters)1 - 100101 - 1000>1000
Est. Time(days)1525To be negotiated




Product Presentation

Product introduction:


No dot 24V cob led strip Lights 10W 1200lm CRI 90 5 years warranty 8mm cob light strip


Compared with SMD led strip light, the two big advantages are as follows:

1. Integrated LED source package, consistent light, no particle, no dark area.
2. It is more flexible than the normal strip lights, more resistant to bending, and avoids a section not work.


LED light strips are widely used in various scenes due to their advantages of flexibility, easy modeling, dimmable, cuttable and connectable, easy installation, low cost, low voltage and very safe.


Led outdoor lighting IP68 waterproof led strip lights can be installed outdoor and underwater.

UV protective silicone outside,flexible,no yellowing,no cracking,2-5 years warranty.


- Home lighting. Living room, bedroom,study room,balcony.

- Commercial auxiliary lighting. Shipping mall, the cinema, sauna room,wine bar,club, beauty salon.

- Landscape lighting. Public park, plaza, gymnasium, commercial building, tourist attractions.

- Decorative lighting. Opening ceremony, wedding, audience seat partition.

- Special application lighting. Elevator shaft, mine, tunnel, construction site.

- Warning lighting. Road maintenance, hazardous areas, accident sites.


Model
SP.COB512.082
Product Name
COB led strip light
Power Consumption
10W/m
Luminous Flux
1200lm, 1100lm, 900lm
Emitting Color
3000K, 4000K, 6000K
Input Voltage
24V DC
LED Source
Sanan chip, 512pcs/m
LED Chip
Sanan
CRI
90+
Protection Rating
IP20 indoor lighting
Min. Bending Dia
50mm
Beam Angle
180 degree
Dimmable
Yes
Ambient Temp.
-20℃ to +40℃ ( 25℃-best fit )
Sectional Dimension
Width 8 x Thickness 1.6 mm
Cutting length
62.5mm
Max. working length
5M/roll
Max. Packagage
5M/roll
Length per Roll
5M/roll
Package Content
1x 5m strip light
Adhesive 3M on back
Material
Copper
HS Code
940540.9
Certificate
CE,RoHS
LED Rated Lifetime
50,000 Hours
Warranty
5 Years
Product Description

Advantages:

* Super bright.
* No dot. Integrated LED source package, consistent light, no particle, no dark area. * It is more flexible than the SMD led light strip, more resistant to bending, and avoids a section not work. * Wider beam angle to 180 degree,much wider than normal strip light 120 degree. * Chips are fixed on PCB, reduce the failure rate. * 110lm High light efficiency, energy saving.

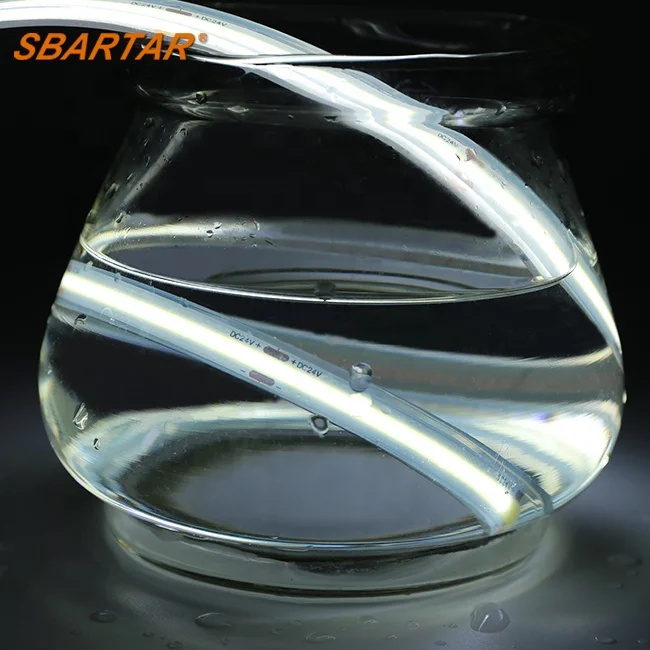

* Waterproof. IP68 underwater led outdoor lighting. The strip lights can be used both indoor and outdoor.
* Easy Installation. Fix it with clips and screws, or paste it onto smooth surface.
* Dimmable. Light Brightness can be adjustable when you add a dimmer between power supply and led strip lights.
* Flexible. Slim, compact and flexible led strip. Applicable for bendable or angled patterns, or in continuous rows.
* Cuttable and linkable. It can be cut to length along the cutting marks, without damaging the rest strips.
* Safe Voltage. 12V,24V safe voltage, never get an electric shock.
* Reduce re-lamp frequence. Long lifespan. Save effort and labour costs on changing lights frequently.
* Eco-Friendly. No lead or mercury Application: It is convenient and cost-saving for large outdoor projects.
* Widely applicable. Indoor,outdoor and underwater use, powered by driver or batteries, controlled by remote,celphone.

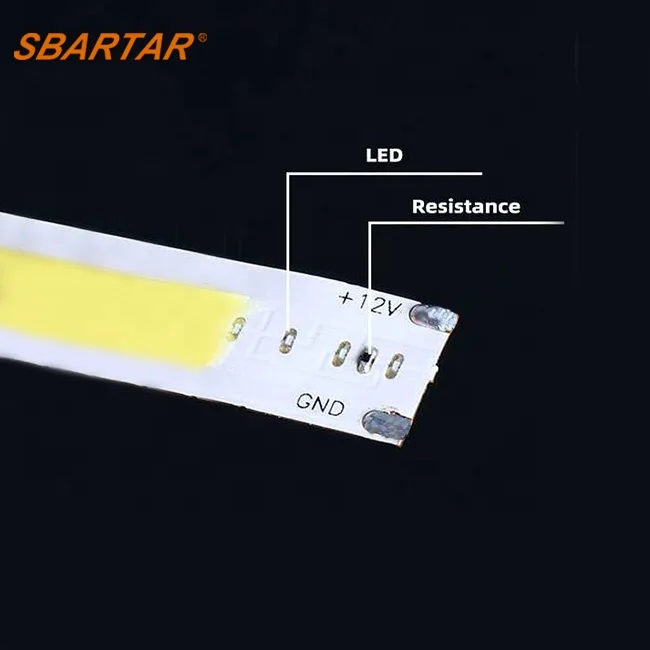

High LED density, No dot.

512 chips per meter, good light consistency.The center distance between two chips is 1.95mm.

A variety of colors.

3000K,4000K,6000K for lighting,
Red,green,blue for decoration.

Installed with Aluminum.

IP 20 COB strip for indoor lighting,
IP67 COB led strip for outdoor decoration .
Certificate

Certificates for our markets:


* Europe: CE, RoHS
* Japan: PSE
* Middle East and Southeast Asia: CB
* North American: ETL,FCC
* Australia: SAA

* ISO9001:2015 NO.NOA157158
Related Products
Company Introduction

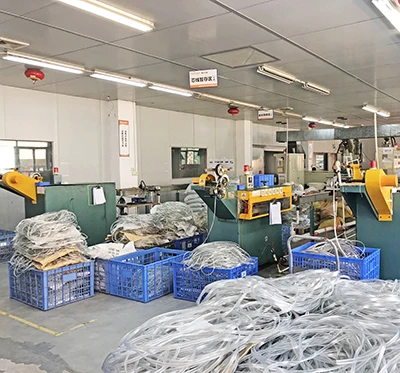

SHENZHEN SPARTA OPTOELECTRONICS CO.,LTD, established in 2011, focus on the development,manufacturering and exporting flexible led strip lights, located in Longgang district,Shenzhen City and covered 15,000 sqm and 130 staffs.We have our own independent laboratory with advanced testing equipments and experienced R&D engineers. As the OEM supplier for Panasonic,Philips and Opple,we have our unique resources,advanced equipments, skillful processing techniques and strict quality control,which would guarantee us to be a stable and reliable supplier for flexible led strip lights. All our products with the certificates of CQC,CB,TUV-mark,CE,RoHS,ERP,FCC,ETL,PSE,SAA and ISO9001:2015.
Packing&Shipping

5M ESD bag packaging

Suitable for electrical stores, wholesaler,projects.

50M carton wholesale and project packaging

Suitable for sale in shearing section, also suitable for whole roll installation of special project.
FAQ
Semi-Automatic PET Bottle Blowing Machine Baottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.

Q: Are you a factory ?

Yes,we have more than 100 workers in workshop and QC group. We start from SMT to finished product.

Q: How do you control quality ?

We control quality strictly by ISO 9001:2015 standard. There are seven inspection procedures in the whole production process.

Q. How can I get a sample ?

Contact online customer service and tell them what you need.

Q: What's the MOQ ?

The minimum order quantity for special products is 2000m.

Q: How to choose the luminous color?

3000K for warm and relaxing.
6500K for business and reading.Other colors reference design required.

Q: How to pay the order ?

1. Online payment for Alibaba order.
2. Paypal for a small amount.
3. T/T for offline orders.

Q: Offer OEM or ODM service ?

Yes,more than 7 years of OEM & ODM experience.

Q: Customize a special input voltage?

Yes. We have made 186-265V AC, 277V, 58V DC, 36V AC.

Q: What is the delivery time ?

3-5 days for samples.
30-35 days for offical order.
